LC LED-UT-852UY: 1206 Yellow Dome Len Chip SMD

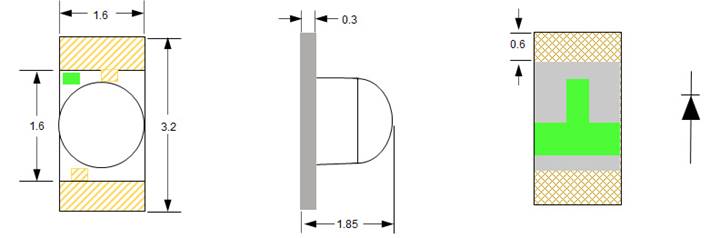

3.2mm x 1.6mm x 1.85mm Chip SMD (30 Degree)
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS Compliant
Part |
(5) Indicator and
Backlighting Applications |
|
(2) SMD
Assembly or Manual Soldering |
(6) Medical and
Industrial Devices |
|
(3) Moisture
Sensitive Component |
|
|
(4) Bin Sorted by
Vf, Wavelength, Intensity |
|
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current |
30 |
mA |
|
Electro-Static (ESD) Charge |
2500 |
V |
|
Operating Temperature |
-40
to +100 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
(1) Pulse width of 1/10 duty and 10msec width,
for long operating life, max. of 20mA recommended
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage |
VF |
IF
= 20mA |
1.9 |
|
2.4 |
V |
|
Reverse
Voltage |
VR |
IR
= 10mA |
|
|
5 |
V |
|
Dominant
Wavelength |
lD |
IF
= 20mA |
590 |
nm |
||
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
30 |
|
Deg. |
|
Luminous
Intensity |
IV |
IF
= 20mA |
350 |
650 |
mcd |
|
