LC LED-UT-652RY2D: 1206 Red & Yellow Chip SMD
3.0mm x 1.5mm x 0.9mm Bicolor Chip SMD (170 Degree) Milky
Len
|
PRODUCT DESCRIPTION |
|
|
(1)
RoHS Compliant Part |
(5)
Indicator and Backlighting Applications |
|
(2)
SMD Assembly or Manual Soldering |
(6)
1206 Bicolor Chip SMD |
|
(3)
Moisture Sensitive Component |
|
|
(4)
Bin Sorted by Vf, Wavelength, Intensity |
|

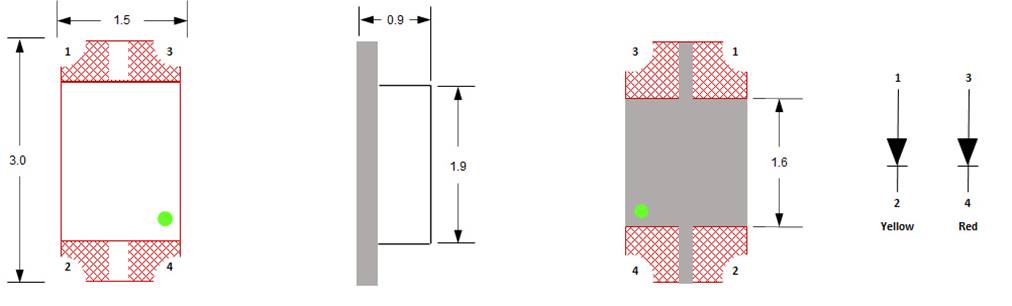

DEVICE DIAGRAM
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current |
30 |
mA |
|
Electro-Static (ESD) Charge |
2500 |
V |
|
Operating Temperature |
-40
to +100 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
(1) Pulse width of 1/10 duty and 10msec width,
for long operating life, max. of 20mA recommended
Electro-optical Characteristics
(Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
DC Forward
Voltage (Red) |
VF |
IF
= 20mA |
1.7 |
2.1 |
V |
|
|
DC Forward
Voltage (Yellow) |
VF |
IF
= 20mA |
1.8 |
2.3 |
V |
|
|
Luminous
Intensity (Red) |
IV |
IF
= 20mA |
200 |
|
300 |
mcd |
|
Luminous Intensity
(Yellow) |
IV |
IF
= 20mA |
200 |
|
300 |
mcd |
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
170 |
Deg. |
||
|
Dominant
Wavelength (Red) |
lD |
IF
= 20mA |
620 |
635 |
nm |
|
|
Dominant
Wavelength (Yellow) |
lD |
IF
= 20mA |
590 |
595 |
nm |
|
|
LC LED Corporation |
