LC LED UT-352GR2D: Reverse
Mount Green & Red Chip SMD LED
Reverse Mount 3.2mm x 1.25mm x 1.1mm Bicolor Chip SMD (170
Degree) Milky Diffused
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS Compliant
Part |
(5) Indicator and
Backlighting Applications |
|
(2) SMD Assembly
or Manual Soldering |
(6) Reverse Mount
Bicolor Chip SMD |
|
(3) Moisture
Sensitive Component |
(7) Milky Len |
|
(4) Bin Sorted by Vf, Wavelength, Intensity |
|

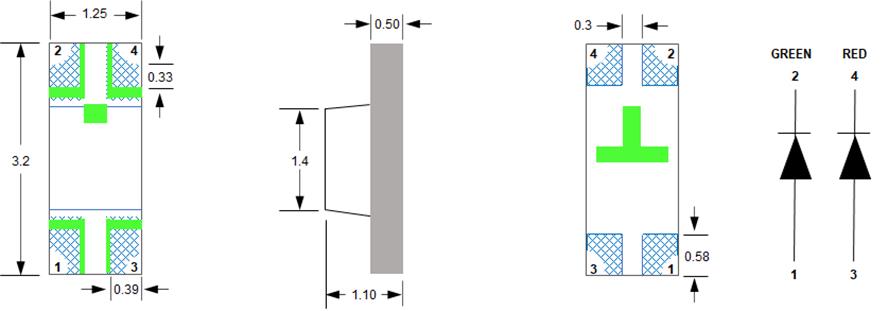

DEVICE DIAGRAM
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Average Forward Current |
30 |
mA |
|
Electro-Static (ESD) Charge |
2500 |
V |
|
Operating Temperature |
-40
to +100 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
(1) Pulse conditions of 1/10 duty and 0.1msec for
long operating life, max. of 20mA recommended
Electro-optical Characteristics
(Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
DC Forward
Voltage (Green) |
VF |
IF
= 20mA |
2.8 |
3.5 |
V |
|
|
DC Forward
Voltage (Red) |
VF |
IF
= 20mA |
1.7 |
2.2 |
V |
|
|
Luminous
Intensity (Green) |
IV |
IF
= 20mA |
450 |
|
900 |
mcd |
|
Luminous Intensity
(Red) |
IV |
IF
= 20mA |
145 |
|
250 |
mcd |
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
170 |
Deg. |
||
|
Dominant
Wavelength (Green) |
lD |
IF
= 20mA |
515 |
530 |
nm |
|
|
Dominant
Wavelength (Red) |
lD |
IF
= 20mA |
620 |
635 |
nm |
|
|
LC LED Corporation |
