LC LED SLT-758TB: 0.2W Blue SMD LED

HIGHLIGHTS	APPLICATIONS
· 0.2W SMD LED (60mA) · Low Power Consumption · Long Operating Life · RoHS Compliant Part	· General Lighting · Status Indicator · Consumer Devices · Instrumentation Lighting

Absolute Maximum Rating (Ta = 25⁰C)

PARAMETER	MAXIMUM RATING	UNITS
Power Dissipation	200	mW
DC Forward Current	60	mA
Peak Pulse Forward Current (1)	150	mA
Operating Temperature	-30 to +85	^0C
Storage Temperature	-40 to +100	^0C
Soldering Recommendation	260°C For 10 Sec Max. (Reflow) 300°C For 3 Sec Max (Manual)

(1) Max. duty cycle of 1/10 and max. pulse width of 0.1msec

Electro-optical Characteristics (Ta = 25⁰C)

PARAMETER	SYMBOL	CONDITIONS	MIN.	TYP.	MAX.	UNIT
DC Forward Voltage	VF	IF = 60mA	2.8		3.4	V
Reverse Voltage	VR	IR = 10mA			5	V
Intensity	IV	IF = 60mA	1,500		2,000	mcd
Viewing Angle	2q1/2	IF = 60mA		120		Deg.
Peak Wavelength	lD	IF = 60mA	460		465	nm

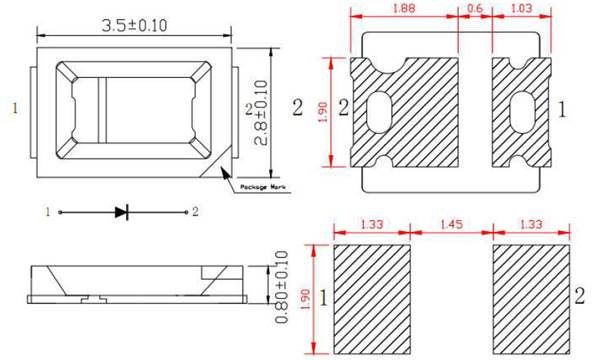

DEVICE DIMENSIONS
