LC LED SLT-5050YG: 5050 Super
Yellow Green SMD LED
|
HIGHLIGHTS |
APPLICATIONS |
|
·
5.0mm x 5.0mm PLCC-6 SMD LED ·
Low Power Consumption ·
Long Operating Life ·
RoHS Compliant Part |
·
General Lighting ·
Task Lighting ·
Consumer Devices ·
Industrial and Medical Instrumentation |

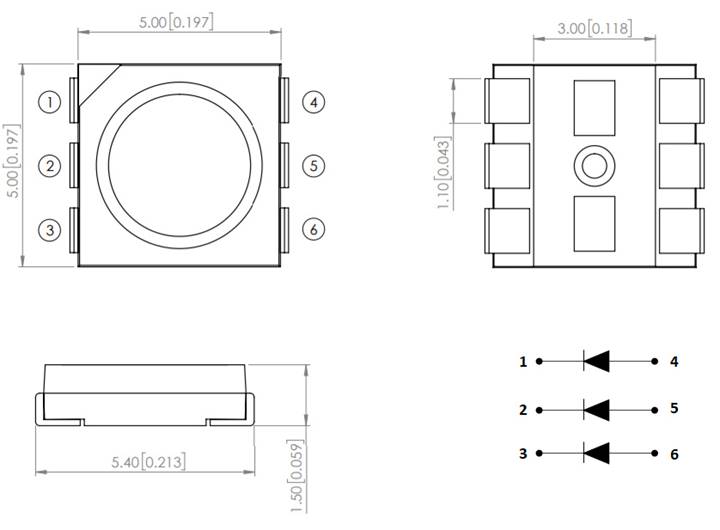

DEVICE DIMENSIONS
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
Power Dissipation |
300 |
mW |
|
DC Forward Current |
3
x 30 |
mA |
|
Peak Pulse Forward Current (1) |
3
x 100 |
mA |
|
Operating Temperature |
-40
to +100 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Electro-Static (ESD) Charge |
2500 |
V |
(1)
Pulse conditions of 1/10 duty and 0.1msec width per led die
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
DC Forward
Voltage |
VF |
IF
= 60mA |
1.8 |
2.4 |
V |
|
|
Peak
Wavelength |
lD |
IF
= 60mA |
571 |
nm |
||
|
Intensity |
IV |
IF
= 60mA |
300 |
500 |
mcd |
|
|
Viewing Angle |
2q1/2 |
IF
= 60mA |
|
140 |
|
Deg. |
|
Reverse
Voltage |
VR |
IF
= 60mA |
|
|
5 |
V |
|
LC LED Corporation |
