LC LED SLT-375TUY: 0.5W
Yellow SMD LED
|
HIGHLIGHTS |
APPLICATIONS |
|
·
Rectangular SMD LED ·
Low Power Consumption ·
Long Operating Life ·
RoHs Compliant Part |
·
General Lighting ·
Task Lighting ·
Consumer Devices ·
Industrial and Medical Instrumentation |

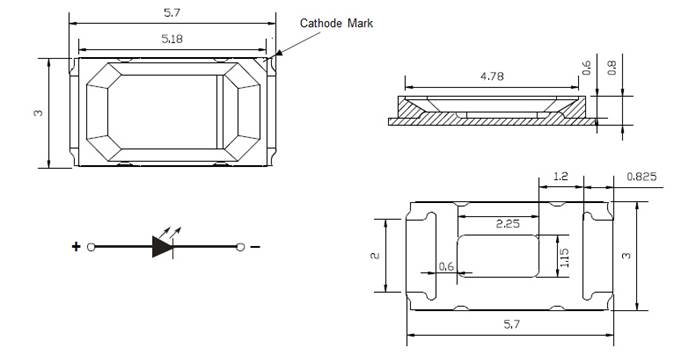

DEVICE DIMENSIONS
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
Power Dissipation |
500 |
mW |
|
DC Forward Current |
150 |
mA |
|
Peak Pulse Forward Current (1) |
300 |
mA |
|
Operating Temperature |
-40
to +85 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Soldering Recommendation |
260°C
For 10 Seconds |
|
(1) Max.
duty cycle of 1/10 and max. pulse width of 0.1msec
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
DC Forward
Voltage |
VF |
IF
= 150mA |
1.7 |
2.3 |
V |
|
|
VR |
IR = 10mA |
|
|
5 |
V |
|
|
Intensity |
IV |
IF
= 60mA |
1,800 |
|
4,000 |
mcd |
|
IF
= 150mA |
4,700 |
|
7,800 |
mcd |
||
|
Viewing Angle |
2q1/2 |
IF
= 150mA |
|
120 |
|
Deg. |
|
Peak
Wavelength |
lD |
IF
= 150mA |
585 |
|
595 |
nm |

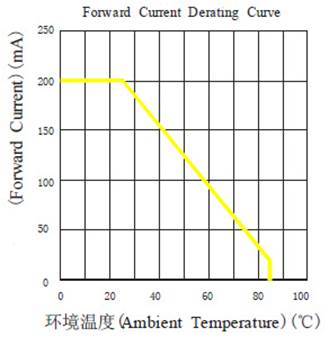

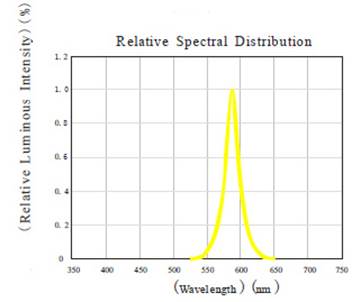

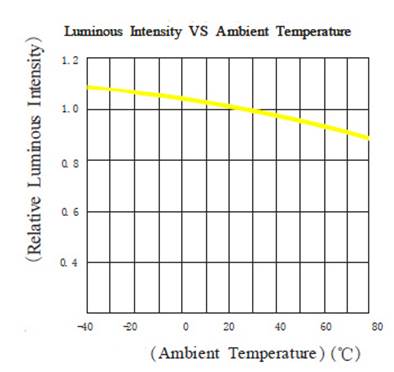

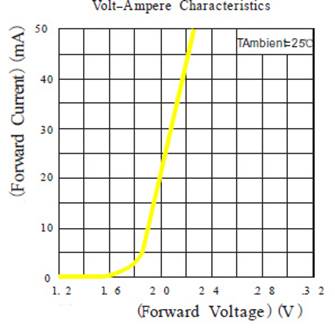

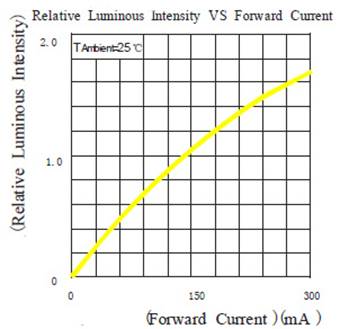

Electro-Optical Curve
Characteristics
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LC LED Corporation |
