LC LED SLT-358TG: 1W Green
SMD LED
|
HIGHLIGHTS |
APPLICATIONS |
|
·
1W SMD LED (300mA) ·
Low Power Consumption ·
Long Operating Life ·
RoHS Compliant Part |
·
Backlighting ·
Status Indicator ·
Consumer Devices ·
Medical and Industrial Instrumentation |

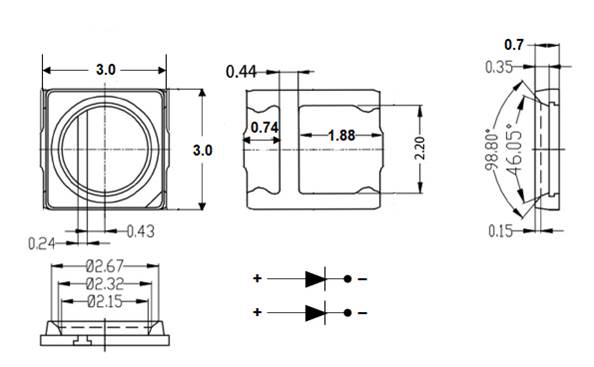

DEVICE DIMENSIONS
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
Power Dissipation |
1,000 |
mW |
|
DC Forward Current |
300 |
mA |
|
Peak Pulse Forward Current (1) |
225 |
mA |
|
Operating Temperature |
-30
to +85 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Soldering Recommendation |
230°C
-260°C For 8 Seconds |
|
(1) Max.
duty cycle of 1/10 and max. pulse width of 10msec
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
DC Forward
Voltage |
VF |
IF
= 300mA |
3.0 |
3.5 |
V |
|
|
VR |
IR = 10mA |
|
|
5 |
V |
|
|
Intensity |
IV |
IF
= 150mA |
14,500 |
|
18,500 |
mcd |
|
IF
= 300mA |
30,000 |
|
35,600 |
mcd |
||
|
Viewing Angle |
2q1/2 |
IF
= 300mA |
|
120 |
|
Deg. |
|
Peak
Wavelength |
lD |
IF
= 300mA |
515 |
|
525 |
nm |

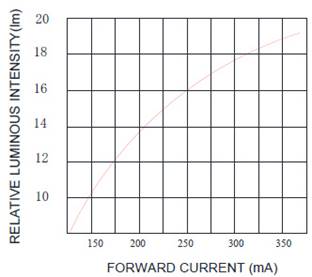

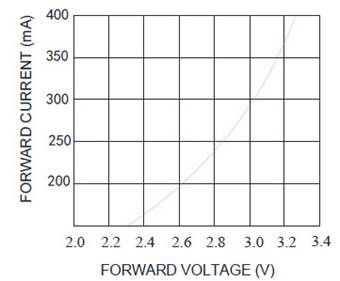

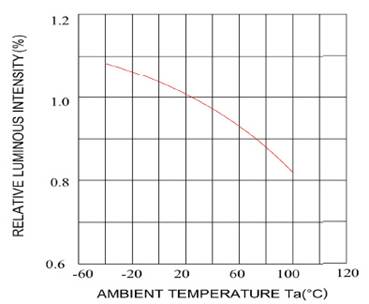

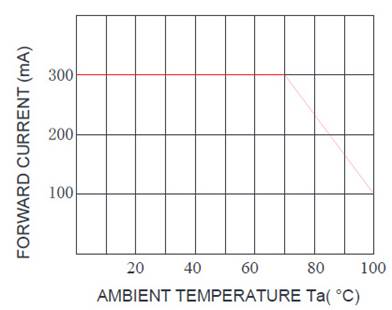

Electro-Optical Curve
Characteristics
|
|
|
|
|
|
|
|
|
|
LC LED Corporation |
