R300TB4D-5V: 3mm 5V Blue LED

LC LED 5V 3mm T1 LED Lamp Water Clear (30 Degree)

PRODUCT DESCRIPTION
(1) Design for 5V to 6VDC Operation	(4) High Intensity LED Die Suitable for Outdoor Uses
(2) No External Wiring or Resistor	(5) Max. Current Load of 20mA
(3) Incorporates Built-In Internal Resistor Chip	(6) RoHS Compliant Part

Absolute Maximum Rating (Ta = 25⁰C)

PARAMETER	MAXIMUM RATING	UNITS
Max. DC Forward Voltage	6	V
DC Forward Current	20	mA
Avg. Forward Current	20	mA
Operating Temperature	-30 to +85	^0C
Storage Temperature	-30 to +85	^0C
Lead Soldering Temperature	260^0C for 6 seconds (1.0mm or 0.63 inch from Body)

Electro-optical Characteristics (Ta = 25⁰C)

PARAMETER	SYMBOL	CONDITIONS	MIN.	TYP.	MAX.	UNIT
Forward Voltage	VF	IF = 20mA	4.5		6	V
Reverse Current	IR	IF = 20mA			100	mA
Dominant Wavelength	lD	IF = 20mA		465		nm
Viewing Angle	2q1/2	IF = 20mA		30		Deg.
Luminous Intensity	IV	IF = 20mA	2,500		4,500	mcd

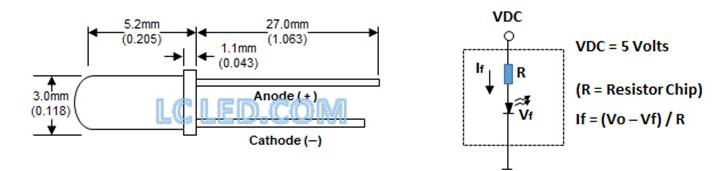

DEVICE DRAWING

LC LED Corporation
