LC LED R2033TR2Y: 1.8mm Bicolor Red & Yellow SMD LED
LC LED Axial 1.8mm SMD LED Red and Amber (170 Degree) Milky
Diffused
|
PRODUCT DESCRIPTION |
|
|
(1) ROHS Compliant
Part |
(4) Suitable for
SMT Assembly |
|
(2) Super Bright
Bi-Color SMD LED Red & Yellow |
(5) Sun Light Viewable SMD LED |
|
(3) Excellent color
mixing characteristics |
(6) Rugged design suitable for both indoor
& outdoor use |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
20 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current |
25 |
mA |
|
Operating Temperature |
-40
to +80 |
0C |
|
Storage Temperature |
-40
to +85 |
0C |
(1) Pulse width of 1/10 duty and 10msec width,
for long operating life, max. of 20mA recommended
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage (Red) |
VF |
IF
= 20mA |
1.6 |
|
2.1 |
V |
|
Forward
Voltage (Amber) |
VF |
IF
= 20mA |
1.7 |
|
2.2 |
V |
|
Reverse Voltage |
VR |
IR
= 100mA |
|
|
5 |
V |
|
Dominant
Wavelength (Red) |
lD |
IF
= 20mA |
620 |
|
630 |
nm |
|
Dominant
Wavelength (Amber) |
lD |
IF
= 20mA |
588 |
|
595 |
nm |
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
170 |
|
Deg. |
|
Luminous
Intensity (Red) |
IV |
IF
= 20mA |
|
850 |
|
mcd |
|
Luminous
Intensity (Amber) |
IV |
IF
= 20mA |
|
650 |
|
mcd |

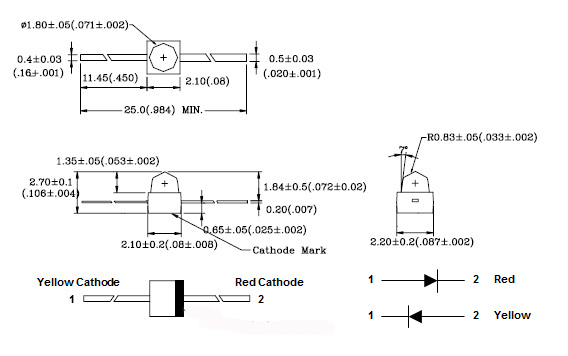

DEVICE DIAGRAM
|
LC LED Corporation |
