LC LED R2033TP: 1.8mm Purple
SMD LED
LC LED Subminiature SMD LED (30 Degree) Clear
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS Compliant
Part |
(4) SMD Assembly or
Manual Soldering |
|
(2) High Luminous
Intensity, Low Power Consumption |
(5) Bin Sorted By Vf, Color & Intensity |
|
(3) Subminiature
SMD LED |
(6) Indicator /
Panel Lighting |

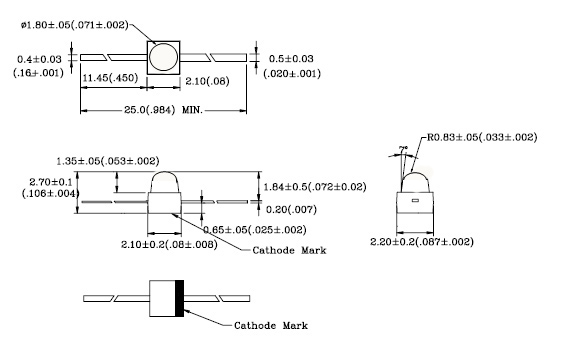

DEVICE DRAWING
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
SYMBOL |
VALUE |
UNITS |
|
DC Forward Current |
IF |
20 |
mA |
|
Peak Forward Current (1/10 duty, F=1kHz) |
IFP |
100 |
mA |
|
Reverse Voltage |
VR |
5 |
V |
|
Operating Temperature |
Topr |
-25
to +85 |
0C |
|
Storage Temperature |
Tstg |
-30
to +90 |
0C |
|
Soldering Temperature |
Tsol |
Max.
2600C for 5 Second |
Electrical
and Optical Characteristics at 20mA (Ta = 250C)
|
PARAMETER |
SYMBOL |
TEST CONDITIONS |
MIN. |
TYP. |
MAX. |
Units |
|
Wavelength |
|
IF= 20mA |
|
Purple |
|
|
|
Forward
Voltage |
VF |
IF= 20mA |
2.8 |
3.4 |
V |
|
|
Luminous
Intensity |
IV |
IF= 20mA |
800 |
|
1,500 |
mcd |
|
Reverse
Current |
IR |
VR = 5V |
|
|
100 |
mA |
|
Viewing
Angle |
ɸR |
IF= 20mA |
|
30 |
|
Degree |
|
LC LED Corporation |
