LC LED N500UV4D-410P: 0.16W
5mm UV 410nm LED
HIGHLIGHTS |
APPLICATIONS |
·
High Power UV-A LED ·
Wide Range of Wavelengths (365nm to
430nm) ·
High Power Dome Package ·
Low Thermal Resistance ·
RoHS Compliant Part |
·
Purification and Sterilization ·
Curing for Ink, Adhesive and Coating ·
Inspection and Detection ·
Medical and Industrial Instrumentation ·
Black Light |
Absolute Maximum Rating
(Ta = 250C)
PARAMETER |
MAXIMUM RATING |
UNITS |
DC Forward Current (1) |
40 |
mA |
Peak Pulse Forward Current (2) |
60 |
mA |
Avg. Forward Current (Pulse Operation) |
40 |
mA |
Operating Temperature |
-30
to +85 |
0C |
Storage Temperature |
-40
to +100 |
0C |
(1) Max. DC current for 2-die in parallel
(2)
Pulse width of 1/10 duty and 0.1msec width, for long operating life,
max. pulse current for 2-die in parallel
Electro-optical
Characteristics (Ta = 250C)
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
Forward
Voltage |
VF |
IF
= 40mA |
3.0 |
3.6 |
V |
|
Reverse
Voltage |
VR |
IR
= 10mA |
|
|
5 |
V |
Peak
Wavelength |
lD |
IF
= 40mA |
410 |
420 |
|
|
Viewing
Angle |
2q1/2 |
IF
= 40mA |
|
30 |
|
Deg. |
Radiant
Power |
IE |
IF
= 40mA |
70 |
mW |
||
Radiant
Intensity |
IV |
IF
= 40mA |
|
120 |
|
mW/Sr |

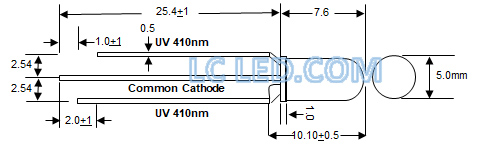

DEVICE
DRAWING
LC LED Corporation |
