LCSD-4014TB11: Surface Mount Blue 0.4 Inch (10.16mm) LED Display (Black Background) Anode

PRODUCT DESCRIPTION
(1) SMD Display 0.4 Inch (10.16mm) Digit Height	(5) Black Color Background
(2) Low current operation	(6) Common Anode
(3) Excellent color and font characteristics	(7) RoHs Compliant Part
(4) Colors: White, Blue, Red, Yellow (Amber) & Green

Absolute Maximum Rating (Ta = 25⁰C)

PARAMETER	RED	AMBER	GREEN	BLUE	WHITE
DC Forward Current Per Segment	20	20	20	20	20	mA
Peak Current Per Segment (1)	100	100	100	100	100	mA
Avg. Forward Current (Pulse Operation) Per Segment	20	20	20	20	20	mA
Reverse Voltage	5					V
Operating Temperature	-40 to +85					^0C
Storage Temperature	-40 to +85					^0C

(1) Pulse conditions of 1/10 duty cycle @ 1KHz

Electro-optical Characteristics (Ta = 25⁰C)

PART NUMBER	DICE MATERIAL (COLOR)	PEAK WAVELENGTH (nm)	MAX. REVERSE CURRENT / SEGMENT (mA)	VF (V) TYP	VF (V) MAX.	LUMINOUS INTENSITY / SEGMENT AVERAGE (IF = 20mA)
LCSD-4014TW11	InGaN White	5,500K	10	3.0	3.3	220 mcd
LCSD-4014TB11	InGaN Blue	465	10	3.0	3.3	158 mcd
LCSD-4014TUR11	AlInGaP Red	630	10	1.8	2.1	125 mcd
LCSD-4014YG11	AlInGaP Green	571	10	1.7	2.0	85 mcd
LCSD-4014UY11	AlInGaP Yellow	588	10	1.7	2.0	90 mcd

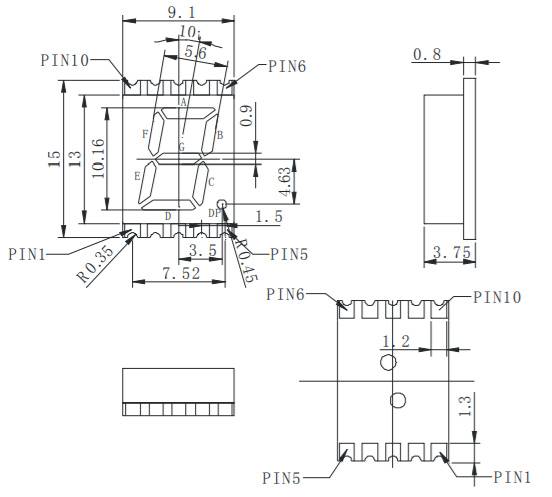

MECHNICAL DIMENSIONS

INTERNAL CIRCUIT LAYOUT

LC LED Corporation
