LCSD-3912TW2C: Surface Mount White 0.39 Inch (10mm) LED Display (Gray Background) Cathode

PRODUCT DESCRIPTION



(1) SMD Display 0.39 Inch (10mm) Digit Height

(5)  Gray Color Background

(2) Low current operation

(6)  Common Cathode

(3) Excellent color and font characteristics

(7)  RoHS 3 and REACH Compliant Part

(4) Colors:  White, Blue, Red, Yellow (Amber) & Green







Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

AMBER

GREEN

BLUE

WHITE



DC Current Per Segment

20

20

20

20

20

mA

Peak Current Per Segment (1)

100

100

100

100

100

mA

Avg. Forward Current Per Segment

20

20

20

20

20

mA

Reverse Voltage

5

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +85

0C

(1)  Pulse conditions of 1/10 duty cycle, 0.1msec pulse width





Electro-optical Characteristics (Ta = 250C)







PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 20mA)

LCSD-3912TW2C

InGaN
White

5,500K

10

3.0

3.5

220 mcd

LCSD-3912TB2C

InGaN
Blue

465

10

3.0

3.5

158 mcd

LCSD-3912TUR2C

AlInGaP
Red

630

10

1.8

2.3

125 mcd

LCSD-3912YG2C

AlInGaP
Green

571

10

1.7

2.1

85 mcd

LCSD-3912UY2C

AlInGaP
Yellow

588

10

1.7

2.1

90 mcd

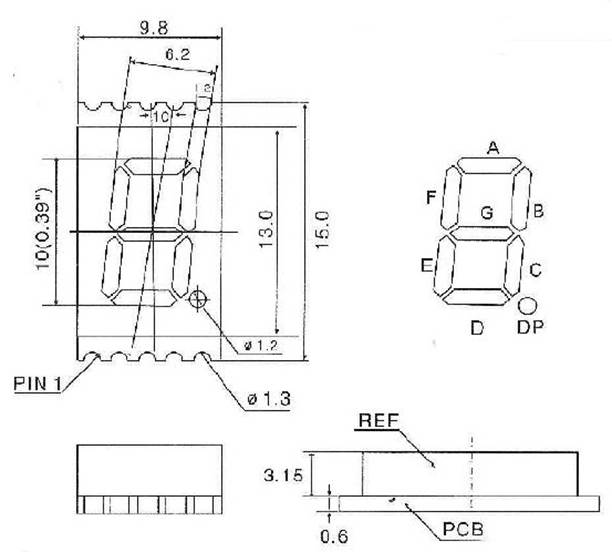

MECHNICAL DIMENSIONS



A close up of a map Description automatically generated





INTERNAL CIRCUIT LAYOUT



A picture containing clock, large, room Description automatically generated
