LCSD-2012TUR2C: Surface Mount Red 0.20 Inch (5.08mm) LED Display (Gray Face) Cathode

PRODUCT DESCRIPTION
(1) SMD Display 0.20 Inch (5.08mm) Digit Height	(5) Gray Color Background
(2) Low current operation	(6) Common Cathode
(3) Excellent color and font characteristics	(7) RoHs Compliant Part
(4) Colors: White, Blue, Red, Yellow (Amber) & Green

Absolute Maximum Rating (Ta = 25⁰C)

PARAMETER	RED	AMBER	GREEN	BLUE	WHITE
DC Forward Current Per Segment	20	20	20	20	20	mA
Peak Current Per Segment (1)	100	100	100	100	100	mA
Avg. Forward Current (Pulse Operation) Per Segment	20	20	20	20	20	mA
Reverse Voltage	5					V
Operating Temperature	-40 to +85					^0C
Storage Temperature	-40 to +85					^0C

(1) Pulse conditions of 1/10 duty cycle @ 1KHz

Electro-optical Characteristics (Ta = 25⁰C)

PART NUMBER	DICE MATERIAL (COLOR)	PEAK WAVELENGTH (nm)	MAX. REVERSE CURRENT / SEGMENT (mA)	VF (V) TYP	VF (V) MAX.	LUMINOUS INTENSITY / SEGMENT AVERAGE (IF = 20mA)
LCSD-2012TW2C	InGaN White	5,500K	10	3.0	3.5	180 mcd
LCSD-2012TB2C	InGaN Blue	465	10	3.0	3.5	135 mcd
LCSD-2012TUR2C	AlInGaP Red	630	10	1.8	2.3	125 mcd
LCSD-2012YG2C	AlInGaP Green	571	10	1.7	2.1	83 mcd
LCSD-2012UY2C	AlInGaP Yellow	588	10	1.7	2.1	75 mcd
LCSD-2012UD2C	AlInGaP Amber	592	10	1.7	2.1	85 mcd

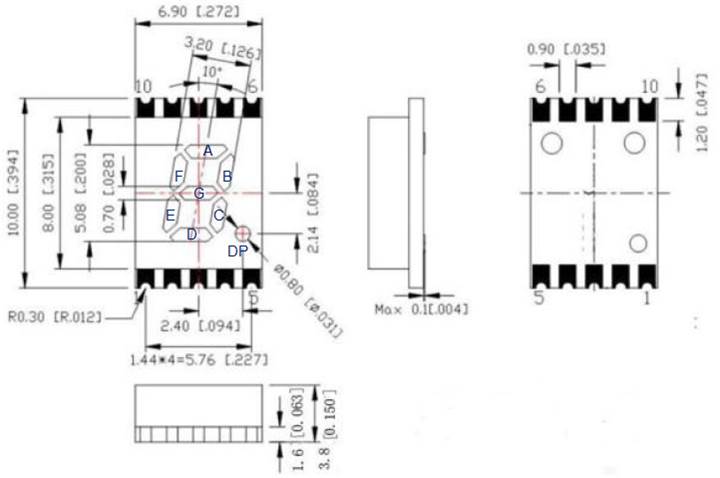

MECHNICAL DIMENSIONS

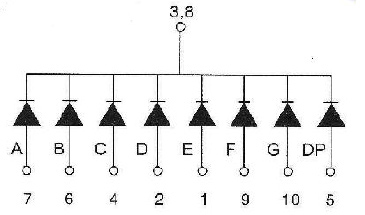

INTERNAL CIRCUIT LAYOUT

LC LED Corporation
