LCS-050NB4B: 5W Power Royal Dental Blue LED with 20mm Starboard (140 Degree)

HIGHLIGHTS	APPLICATIONS
· 5W Royal Dental Blue (450nm) LED With 20mm Heat Sink · Up to 1.4A Drive Current · Low Thermal Resistance · RoHs Compliant Part	· Sun Light Viewable · Channel and Backlighting · Indoor and Outdoor Lighting · Horticultural Lighting · Dental Curing

Absolute Maximum Rating (Ta = 25⁰C)

PARAMETER	MAXIMUM RATING	UNITS
Power	5	W
DC Forward Current	1400	mA
Peak Pulse Forward Current (1)	2000	mA
Operating Temperature	-30 to +85	^0C
Storage Temperature	-40 to +100	^0C
Junction Temperature	150	^0C
Lead Soldering Temperature	260^0C for 5 Seconds Max. (1.6mm from Body)

(1) Pulse conditions of 1/10 duty and 0.1msec width

(2) This device has two LED die in parallel

Electro-optical Characteristics (Ta = 25⁰C)

PARAMETER	SYMBOL	CONDITIONS	MIN.	TYP.	MAX.	UNIT
DC Forward Voltage	VF	IF = 1400mA	3.0		3.6	V
Luminous Intensity	IV	IF = 1400mA	70		120	lm
Viewing Angle	2q1/2	IF = 1400mA	140			Deg.
Dominant Wavelength	lD	IF = 1400mA	450		455	nm

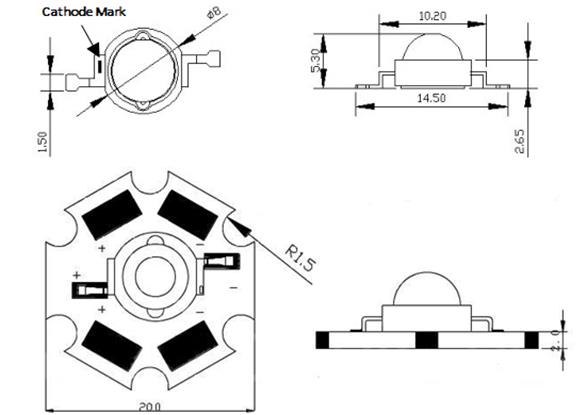

PACKAGE DIMENSIONS
