LCQD-3914YG2C: SMD Four Digit Green 0.39 Inch (10mm) LED Display (Gray Background) Cathode

PRODUCT DESCRIPTION



(1) SMD Display 0.39 Inch (10mm) Four Digit

(5)  Gray Color Background

(2) Low current operation

(6)  Common Cathode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors:  White, Blue, Red, Yellow (Amber) & Green







Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

AMBER

GREEN

BLUE

WHITE



DC Forward Current Per Segment

20

20

20

20

20

mA

Peak Current Per Segment (1)

100

100

100

100

100

mA

Avg. Forward Current (Pulse Operation) Per Segment

20

20

20

20

20

mA

Reverse Voltage

5

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +85

0C

(1)  Pulse conditions of 1/10 duty cycle @ 1KHz





Electro-optical Characteristics (Ta = 250C)







PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 20mA)

LCQD-3914TW2C

InGaN
White

5,500K

10

3.0

3.3

220 mcd

LCQD-3914TB2C

InGaN
Blue

465

10

3.0

3.3

158 mcd

LCQD-3914TG2C

InGaN
Green

525

10

3.0

3.3

275 mcd

LCQD-3914TUR2C

AlInGaP
Red

630

10

1.8

2.3

130 mcd

LCQD-3914YG2C

AlInGaP
Green

571

10

1.7

2.1

85 mcd

LCQD-3914UY2C

AlInGaP
Yellow

590

10

1.7

2.1

90 mcd

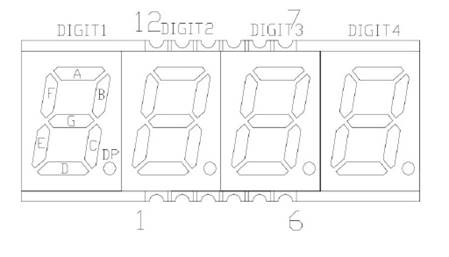

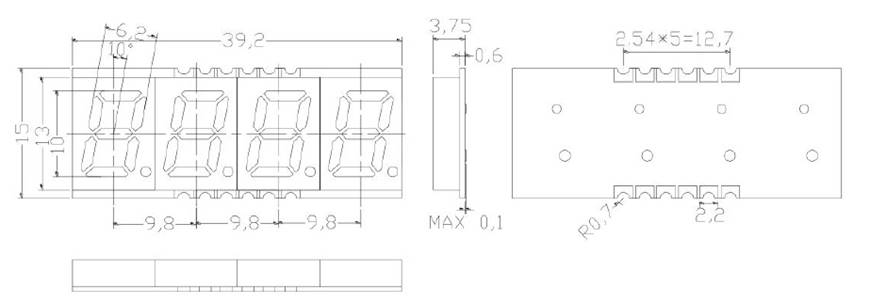

MECHNICAL DIMENSIONS



A close up of text on a white background

Description automatically generated

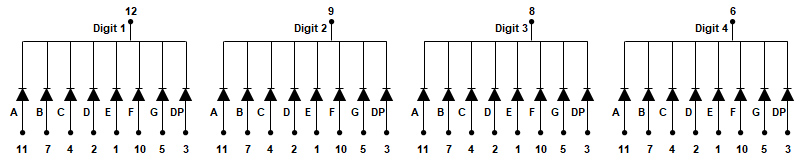

INTERNAL CIRCUIT LAYOUT



A close up of text on a white background

Description automatically generated



A close up of a device

Description automatically generated

LC LED Corporation
