LCQ-5645TUR11: 4 Digit Red 0.56 Inch (14.20mm) LED Display One Common PIN (Anode)

PRODUCT DESCRIPTION
(1) Four Digit 0.56 Inch (14.20mm) Height	(5) Low current operation
(2) Common Anode PIN #30	(6) Black color background
(3) Colors: White, blue, red, yellow, green and purple	(7) RoHS compliant part
(4) Excellent color and font characteristics

Absolute Maximum Rating (Ta = 25⁰C)

PARAMETER	RED	AMBER	GREEN	BLUE	WHITE	PURPLE	UNITS
DC Forward Current Per Segment	30	30	30	30	25	25	mA
Peak Current Per Segment (1)	120	110	100	120	100	100	mA
Avg. Forward Current (Pulse Operation) Per Segment	30	30	30	30	20	20	mA
Reverse Voltage (2)	5						V
Operating Temperature	-30 to +85						^0C
Storage Temperature	-30 to +100						^0C

(1) Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2) Reverse biasing is not recommended, will cause damage to the leds

Electro-optical Characteristics (Ta = 25⁰C)

PART NUMBER	DICE MATERIAL (COLOR)	PEAK WAVELENGTH (nm)	MAX. REVERSE CURRENT / SEGMENT (mA)	VF (V) TYP	VF (V) MAX.	LUMINOUS INTENSITY / SEGMENT AVERAGE (IF = 10mA)
LCQ-5645TW11	InGaN White	5,500K	10	3.3	3.8	75,000 ucd
LCQ-5645TUR11	AlInGaP Red	625	10	1.7	2.6	60,000 ucd
LCQ-5645TP11	InGaN Purple	X =0.34 y = 0.28	10	3.3	3.8	65,000 ucd
LCQ-5645TB11	InGaN Blue	465	10	3.3	3.8	65,000 ucd
LCQ-5645UYG11	AlInGaP Green	571	10	1.8	2.4	50,000 ucd
LCQ-5645UY11	AlInGaP Yellow	590	10	1.8	2.4	60,000 ucd

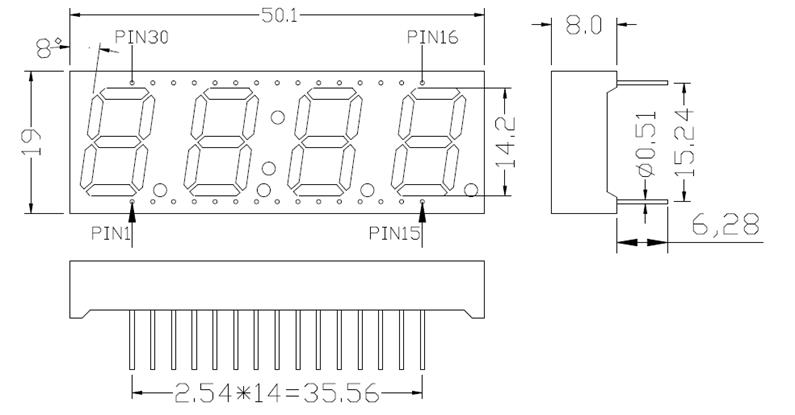

DEVICE DIAGRAM

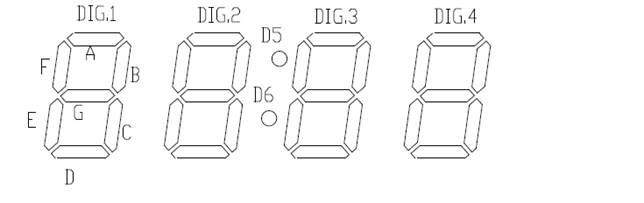

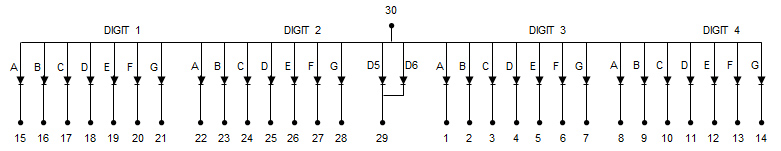

PIN LAYOUT

LC LED Corporation
