P804TG4D:  8mm 0.5W Green LED Lamp

LC LED 0.5 Watt 8mm Green LED Lamp:  Water Clear Lens



Electro-optical Characteristics (Ta = 250C)

PART

COLOR

TOTAL
VIEWING


WAVELENGTH



OPERATING

VF (V)

LUMINOUS
INTENSITY @ 150mA

NUMBER



ANGLE

(nm)

CURRENT

TYP.

MAX.

Min.
(mcd)

Max.
(mcd)

P804TW4D

White

55
Degree

6000K-6500K

150mA

3.0

3.4

65,000

95,000

P804TB4D

Blue

465

3.0

3.4

15,000

20,000

P804TG4D

Green

525

3.0

3.4

68,000

90,000

P804JPF4D

Red

630

2.2

2.4

23,000

30,000

P804JPT4D

Yellow

590

2.1

2.4

18,000

20,000



































Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

Power Dissipation

500

mW

Peak Current (1)

150

mA

Forward Current (DC)

150

mA

Reverse Voltage (IR = 10mA)

5

V

Operating Temperature

-25 to +85

0C

Storage Temperature

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty and 10msec width max.

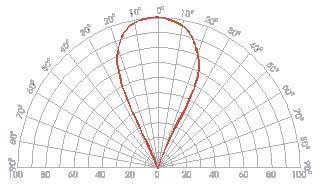

DEVICE DRAWING                                    INTENSITY VS. ANGLE



LC LED Corporation
