P504TW4D: 3W 5mm White LED
Emitter Lamp
LC LED 3 Watt 5mm LED Diode in Water Clear Len 55 Degrees
|
Electro-optical
Characteristics (Ta = 250C)
PART NUMBER |
DICE |
|
Viewing |
VF (V) |
VF (V) |
LUMINOUS |
LUMINOUS |
||
MIN. |
MAX. |
MIN. |
MAX. |
MIN. |
MAX. |
||||
P504TW4D |
InGaN |
6500K |
55 |
2.8 |
3.3 |
85,000 |
100,000 |
150 |
180 |
Absolute
Maximum Rating (Ta = 250C)
PARAMETER |
MAXIMUM RATING |
UNITS |
Power Dissipation |
3000 |
mW |
Peak Current (1) |
1000 |
mA |
Forward Current (DC) |
700 |
mA |
Reverse Voltage |
5 |
V |
ESD Sensitivity |
4000 |
V |
LED Junction
Temperature (2) |
125 |
oC |
Operating Temperature |
-40 to +110 |
oC |
Storage Temperature |
-40 to +120 |
oC |
1) Max. pulse
conditions of 1/10 duty, 0.1msec max. pulse width
2) It is recommended
that the temperature of Lead Frame not be higher than 90 ºC.
DEVICE DRAWING

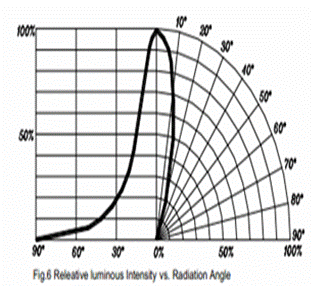

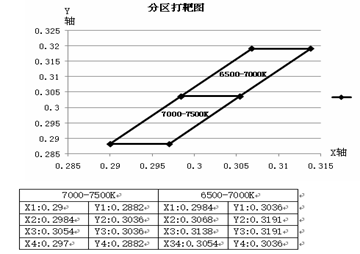

TYPICAL ELECTRICAL / OPTICAL CHARACTERISTICS CURVE AT TA=25℃
