LC LED-N710TBLY2D: 5mm Blue
& Yellow LED Flat Top (130 Degree)
LC LED 5mm Flat Top Blue and Yellow LED Milky Diffused
(Common Anode)
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS Compliant
Part |
(4) Moisture &
UV Resistance Epoxy Len |
|
(2) Super Bright
Bi-Color Blue & Yellow LED Milky Len |
(5) Sun Light
Viewable LED Lamp |
|
(3) Excellent Color
Mixing Characteristics |
(6) Rugged Design
Suitable for Both Indoor & Outdoor Use |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current |
30 |
mA |
|
Operating Temperature |
-40
to +85 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Lead Soldering Temperature |
2600C for 3 seconds |
|
(1) Pulse width of 1/10 duty and 0.1msec width,
for long operating life, max. of 20mA recommended
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage (Blue) |
VF |
IF
= 25mA |
2.8 |
|
3.3 |
V |
|
Forward Voltage
(Yellow) |
VF |
IF
= 25mA |
1.8 |
|
2.1 |
V |
|
Reverse
Voltage |
VR |
IR
= 100mA |
|
|
5 |
V |
|
Dominant
Wavelength (Blue) |
lD |
IF
= 25mA |
460 |
|
465 |
nm |
|
Dominant
Wavelength (Yellow) |
lD |
IF
= 25mA |
590 |
|
595 |
nm |
|
Viewing Angle |
2q1/2 |
IF
= 25mA |
|
130 |
|
Deg. |
|
Luminous Intensity
(Blue) |
IV |
IF
= 25mA |
1,500 |
|
3,000 |
mcd |
|
Luminous
Intensity (Yellow) |
IV |
IF
= 25mA |
1,500 |
|
3,000 |
mcd |

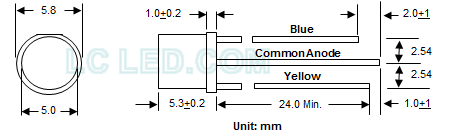

DEVICE DRAWING
|
