250TB1G: 2mm x 5mm Rectangular Blue LED Lamp Color
Diffused
Rectangular Indicator LED Lamp (110 Degree)
|
PRODUCT DESCRIPTION |
|
|
(1)
RoHs Compliant Part |
(4)
Special Colors: Blue & Green |
|
(2)
2mm x 5mm Rectangular LED in Color Diffused Len |
(5)
Rugged & Reliable Design |
|
(3)
High Bright LED Die Material |
|
Electro-optical
Characteristics (Ta = 250C)
|
PART |
DICE MATERIAL |
VIEWING |
DOMINANT |
FORWARD VOLTAGE |
LUMINOUS INTENSITY @ 20mA |
||
|
NUMBER |
COLOR |
ANGLE (Degree) |
WAVELENGTH |
MIN. |
TYP. |
MIN. |
Max. |
|
250TB1G |
InGaN Blue |
110 |
465 |
3.0 |
3.8 |
500 |
1,000 |
|
250TG1G |
InGaN Green |
525 |
3.0 |
3.8 |
1,000 |
2,000 |
|
|
250AUR1G |
AlInGaP Red |
625 |
1.8 |
2.2 |
500 |
1,000 |
|
|
250UY1G |
AlInGaP Yellow |
590 |
1.8 |
2.2 |
500 |
1,000 |
|
Absolute Maximum
Rating (Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Operating Temperature |
-30
to +85 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Lead Soldering Temperature |
2600C for 6 seconds |
|
(1) Pulse conditions of 1/10 duty,10msec pulse
width

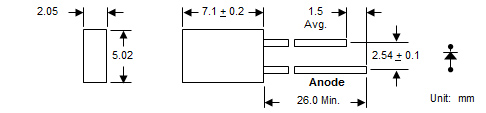

DEVICE
DRAWING
|
LC LED Corporation |
