LED-250RGB4G: 2mm x 5mm Rectangular RGB
LED Lamp (Anode)
LC LED 2mm x 5mm Rectangular RGB 110 Degree Clear LED Lamp
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS Compliant
Part |
(4) Moisture &
UV Resistance Epoxy Len |
|
(2) Super Bright
Tri-Color Rectangular Red, Green & Blue LED |
(5) Sun Light
Viewable LED Lamp |
|
(3) Excellent color
mixing characteristics |
(6) Rugged design
suitable for both indoor & outdoor use |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current |
30 |
mA |
|
Operating Temperature |
-40
to +100 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Lead Soldering Temperature |
2600C for 6 seconds |
|
(1)
Pulse conditions of 1/10 duty and
0.1msec width, for long operating life, max. of 20mA recommended
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage (Red) |
VF |
IF
= 20mA |
1.7 |
|
2.1 |
V |
|
Forward
Voltage (Green) |
VF |
IF
= 20mA |
3.0 |
|
3.3 |
V |
|
Forward
Voltage (Blue) |
VF |
IF
= 20mA |
3.0 |
|
3.3 |
V |
|
Dominant
Wavelength (Red) |
lD |
IF
= 20mA |
|
630 |
|
nm |
|
Dominant Wavelength
(Green) |
lD |
IF
= 20mA |
|
525 |
|
nm |
|
Dominant
Wavelength (Blue) |
lD |
IF
= 20mA |
|
465 |
|
nm |
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
110 |
Deg. |
||
|
Luminous
Intensity (Red) |
IV |
IF
= 20mA |
1,500 |
2,500 |
mcd |
|
|
Luminous
Intensity (Green) |
IV |
IF
= 20mA |
2,500 |
3,500 |
mcd |
|
|
Luminous
Intensity (Blue) |
IV |
IF
= 20mA |
1,000 |
1,500 |
mcd |
|

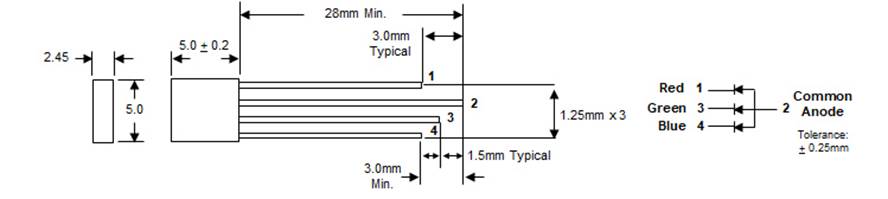

DEVICE DRAWING
|
LC LED Corporation |
