LCE-568UV395P: 5W High Power UV 395nm LED (140 Degree)

HIGHLIGHTS	APPLICATIONS
· High Power UV-A LED · Wide Range of Wavelengths (365nm to 430nm) · High Power Dome Package · Low Thermal Resistance · RoHs Compliant Part	· Purification and Sterilization · Curing for Ink, Adhesive and Coating · Inspection and Detection · Medical and Industrial Instrumentation · Black Light

Absolute Maximum Rating (Ta = 25⁰C)

PARAMETER	MAXIMUM RATING	UNITS
Power	5	W
DC Forward Current	1400	mA
Peak Pulse Forward Current (1)	2000	mA
Operating Temperature	-30 to +85	^0C
Storage Temperature	-40 to +100	^0C
Junction Temperature	150	^0C
Lead Soldering Temperature	260^0C for 5 Seconds Max. (1.6mm from Body)

(1) Pulse conditions of 1/10 duty and 0.1msec width

(2) This device has two LED die in parallel

Electro-optical Characteristics (Ta = 25⁰C)

PARAMETER	SYMBOL	CONDITIONS	MIN.	TYP.	MAX.	UNIT
DC Forward Voltage	VF	IF = 1400mA	3.4		3.8	V
Radiant Intensity	IV	IF = 1400mA	1,000		1,200	mW
Viewing Angle	2q1/2	IF = 1400mA	140			Deg.
Peak Wavelength	lD	IF = 1400mA	395		400	nm

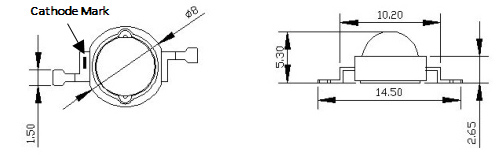

MECHANICAL DIMENSIONS

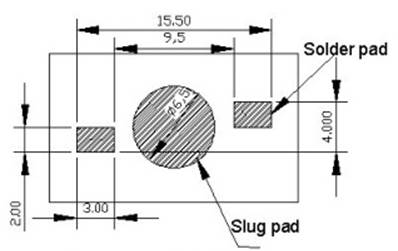

RECOMMENDED SOLDER PAD
