LCE-558UV380P:  3W Power UV LED 380nm (120 Degree)



HIGHLIGHTS

APPLICATIONS

·        High Power UV-A LED

·        Wide Range of Wavelengths (365nm to 430nm)

·        Ceramic Surface Mountable Package

·        Low Thermal Resistance

·        RoHs Compliant Part

·        Purification and Sterilization

·        Curing for Ink, Adhesive and Coating

·        Inspection and Detection

·        Medical and Industrial Instrumentation

·        Black Light



DESCRIPTION







Radiant Power (mW)
@ 500mA



PART NO.

COLOR

MIN.

TYPICAL

VIEWING ANGLE

LCE-558UV380P

380nm

1,100

1,400

120

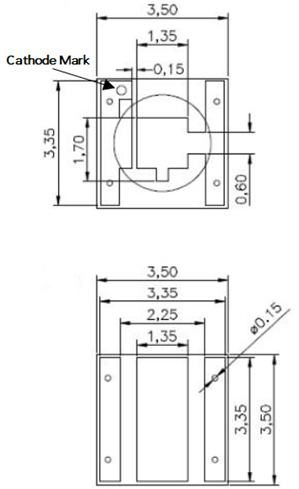

DEVICE DRAWING

A close up of text on a black background Description automatically generatedA close up of a logo Description automatically generated



ELECTRICAL AND OPTICAL CHARACTERISTICS (Ta = 250C)



SYMBOL

PARAMETER

MIN.

MAX.

Units

TEST CONDITIONS

lP

Peak Wavelength

380

385

nm


IF= 500mA

VF

Forward Voltage

3.0

3.8

V

ABSOLUTE MAXIMUM RATING (Ta = 250C)



PARAMETER

SYMBOL

MAXIMUM

UNITS

Power Dissipation

PD

3000

mW

DC Forward Current

IF

1000

mA

Peak Forward Current (1)

IP

1000

mA

Junction Temperature

TJ

125

0C

Thermal Resistance

RTH

4.5

0C / W

Electro-static Discharge

ESD

2000

V

Operating Temperature

Topr

-40 to +85

0C

Storage Temperature

Tstg

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec max. pulse width
