LC2057TW1C: 2.09” (53mm) 5x7 White LED
Dot Matrix
|
PRODUCT DESCRIPTION |
|
|
(1) Dot Matrix
Height 2.09 Inch (53mm) |
(5) Black color background |
|
(2) Low current
operation |
(6) Common Cathode Row |
|
(3) Excellent
color contrast and uniformity |
(7) RoHs Compliant
Part |
|
(4) Colors: White |
|
Absolute Maximum
Rating (Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
Power Dissipation per Dot |
40 |
mW |
|
DC Forward Current per Dot |
20 |
mA |
|
Reverse Voltage per Dot (IR
= 10mA) |
5 |
V |
|
Peak Pulse Forward Current per Dot (1) |
100 |
mA |
|
Operating Temperature |
-40
to +80 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
(1) Pulse conditions of 1/10 duty and 0.1msec
width, for long operating life, max. of 20mA
recommended
(2)
Solder Temperature of 1/16” Below Seating Plane for 5 Seconds at 2600C
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward Voltage per Dot |
VF |
IF
= 20mA |
|
3.3 |
3.8 |
V |
|
Reverse Current per Dot |
IR |
VR = 5V |
|
|
40 |
mA |
|
Chromaticity Coordinate |
x |
IF
= 20mA |
|
0.31 |
|
|
|
y |
IF
= 20mA |
|
0.32 |
|
|
|
|
Luminous Intensity |
IV |
IF
= 20mA |
|
35 |
|
mcd |
|
Luminous Intensity Matching Ratio |
Iv-m |
IF
= 20mA |
2:1 |
|||

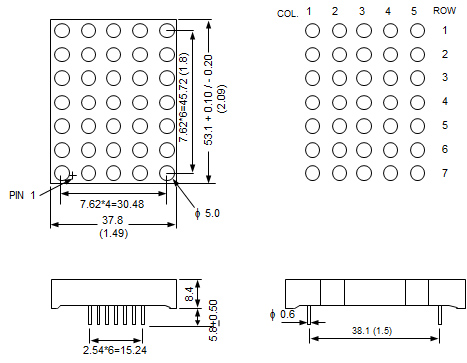

PCB
PIN CONNECTON
DEVICE
DIAGRAM
|
