LC-LED-300UV4D-380P: 3mm UV
380nm LED (30 Degree) Emitter
|
HIGHLIGHTS |
APPLICATIONS |
|
·
High Power UV-A LED ·
Wide Range of Wavelengths (365nm to
440nm) ·
High Power Dome Package ·
Low Thermal Resistance ·
RoHS Compliant Part |
·
Purification and Sterilization ·
Curing for Ink, Adhesive and Coating ·
Inspection and Detection ·
Medical and Industrial Instrumentation ·
Black Light |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
Peak Pulse Forward Current |
30 |
mA |
|
Avg. Forward Current (Pulse Operation) |
20 |
mA |
|
Junction Temperature |
100 |
0C |
|
Operating Temperature |
-25
to +85 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
(1) Duty Cycle 10%, 0.1msec Pulse Width
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward Voltage |
VF |
IF
= 20mA |
3.0 |
3.5 |
V |
|
|
Reverse Voltage |
VR |
IR
= 10mA |
|
|
5 |
V |
|
Peak Wavelength |
lD |
IF
= 20mA |
380 |
385 |
|
|
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
30 |
|
Deg. |
|
Radiant Power |
IE |
IF
= 20mA |
32 |
40 |
|
mW |
|
Radiant Intensity |
IV |
IF
= 20mA |
|
85 |
|
mW/Sr |

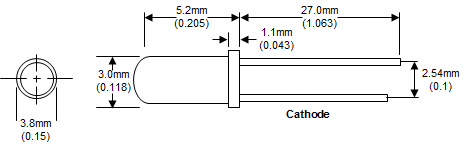

DEVICE
DRAWING
|
LC LED Corporation |
