B300RGB4H: 3mm Color Changing
RGB LED
Quick Flashing Mode – 3mm T1 Color Changing LED Lamp (Water Clear)
|
PRODUCT DESCRIPTION |
|
|
(1) RoHs Compliant Part |
(4) Moisture & UV Resistance
Epoxy Len |
|
(2) Built in I.C. Chip with
Tri-Color Red, Green & Blue LED |
(5) Sun Light Viewable LED Lamp |
|
(3) Color Changing Mode: R->G->B->RG->GB->RB->RGB
at 0.3Hz |
(6) Rugged design suitable for both indoor
& outdoor use |
Absolute Maximum Rating (Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
25 |
mA |
|
Reverse Voltage (IR = 100mA) |
5 |
V |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Derating Linear Value |
0.4mA / 0C |
|
|
Operating & Storage Temperature |
-30 to
+85 |
0C |
|
Lead Soldering Temperature |
2600C for 6 seconds |
|
(1) Pulse conditions of 1/10 duty and 10msec
width
Electro-optical Characteristics (Ta
= 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward Voltage (Red) |
VF |
IF = 20mA |
1.8 |
|
2.2 |
V |
|
Forward Voltage (Green) |
VF |
IF = 20mA |
3.0 |
|
3.5 |
V |
|
Forward Voltage (Blue) |
VF |
IF = 20mA |
3.0 |
|
3.5 |
V |
|
Dominant Wavelength (Red) |
lD |
IF = 20mA |
|
625 |
|
nm |
|
Dominant Wavelength (Green) |
lD |
IF = 20mA |
|
520 |
|
nm |
|
Dominant Wavelength (Blue) |
lD |
IF = 20mA |
|
465 |
|
nm |
|
Viewing Angle |
2q1/2 |
IF = 20mA |
|
40 |
|
Deg. |
|
Luminous Intensity (Red) |
IV |
IF = 20mA |
1,500 |
|
2,500 |
mcd |
|
Luminous Intensity (Green) |
IV |
V |
5,000 |
|
8,000 |
mcd |
|
Luminous Intensity (Blue) |
IV |
IF = 20mA |
1,000 |
|
2,000 |
mcd |
Operating Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
|
MIN. |
TYP. |
MAX. |
UNIT |
|
Operating Voltage |
VDD |
|
3.0 |
4.5 |
5.0 |
V |
|
Driver Current |
I |
VDS = 1.2V |
|
40 |
|
mA |
|
Power Consumption |
P |
VDD = 4.5V |
|
180 |
|
mW |
|
Flash Frequency |
F |
External +
30% |
|
1.7 |
|
Hz |
|
|

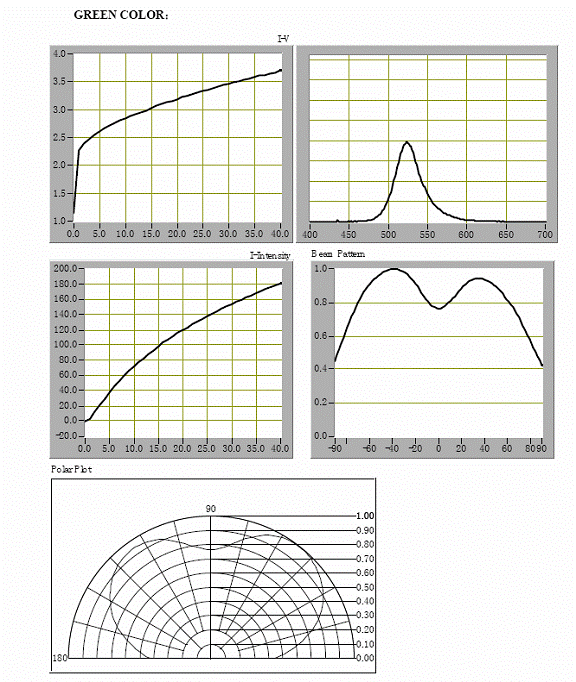

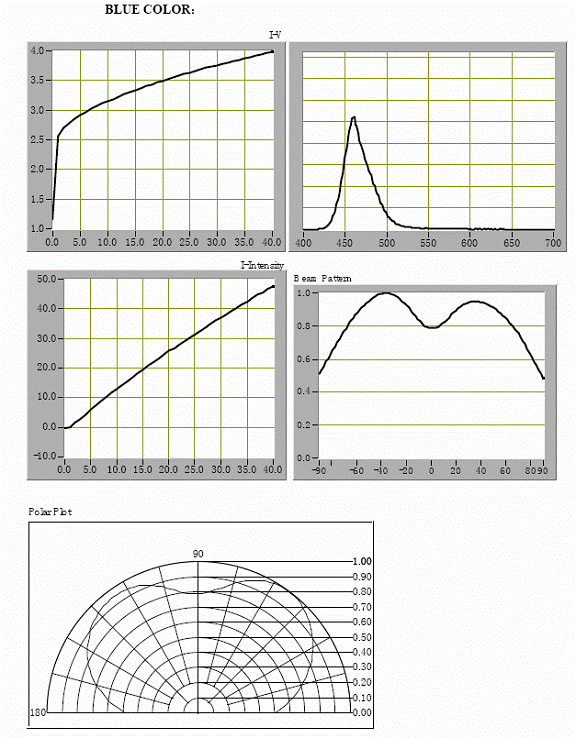

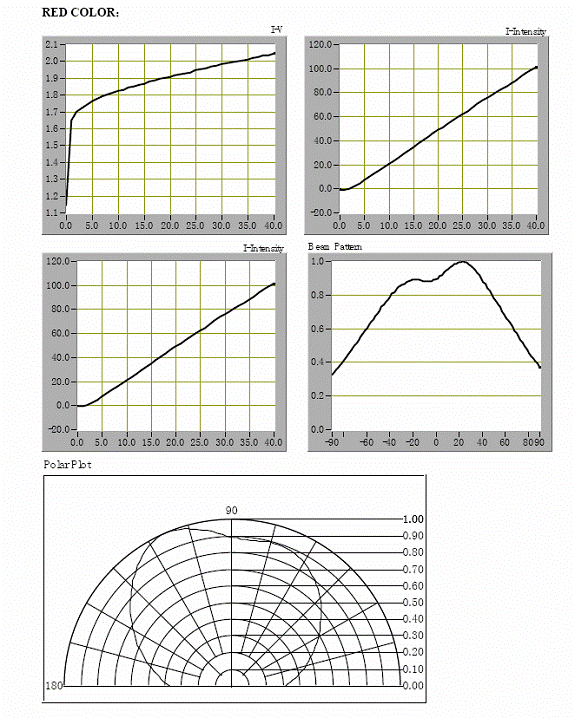

DEVICE DRAWING
|
RGB Color Mixing Diagram
|
LC LED Corporation |
